Standard Boom vs Long Reach Boom: Which One Fits Your Project?

When managing an excavation, dredging, or demolition project, selecting the correct excavator attachment is critical to project timelines, operator safety, and machine performance. One of the most common decisions fleet managers and contractors face is: Should you stick with a Standard Boom or upgrade to a Long Reach Boom?

While a excavator standard boom comes as default for everyday earthmoving, a custom excavator long reach boom expands your equipment’s capabilities - allowing you to tackle deep digging, slope shaping, and river maintenance that a standard machine simply cannot touch.

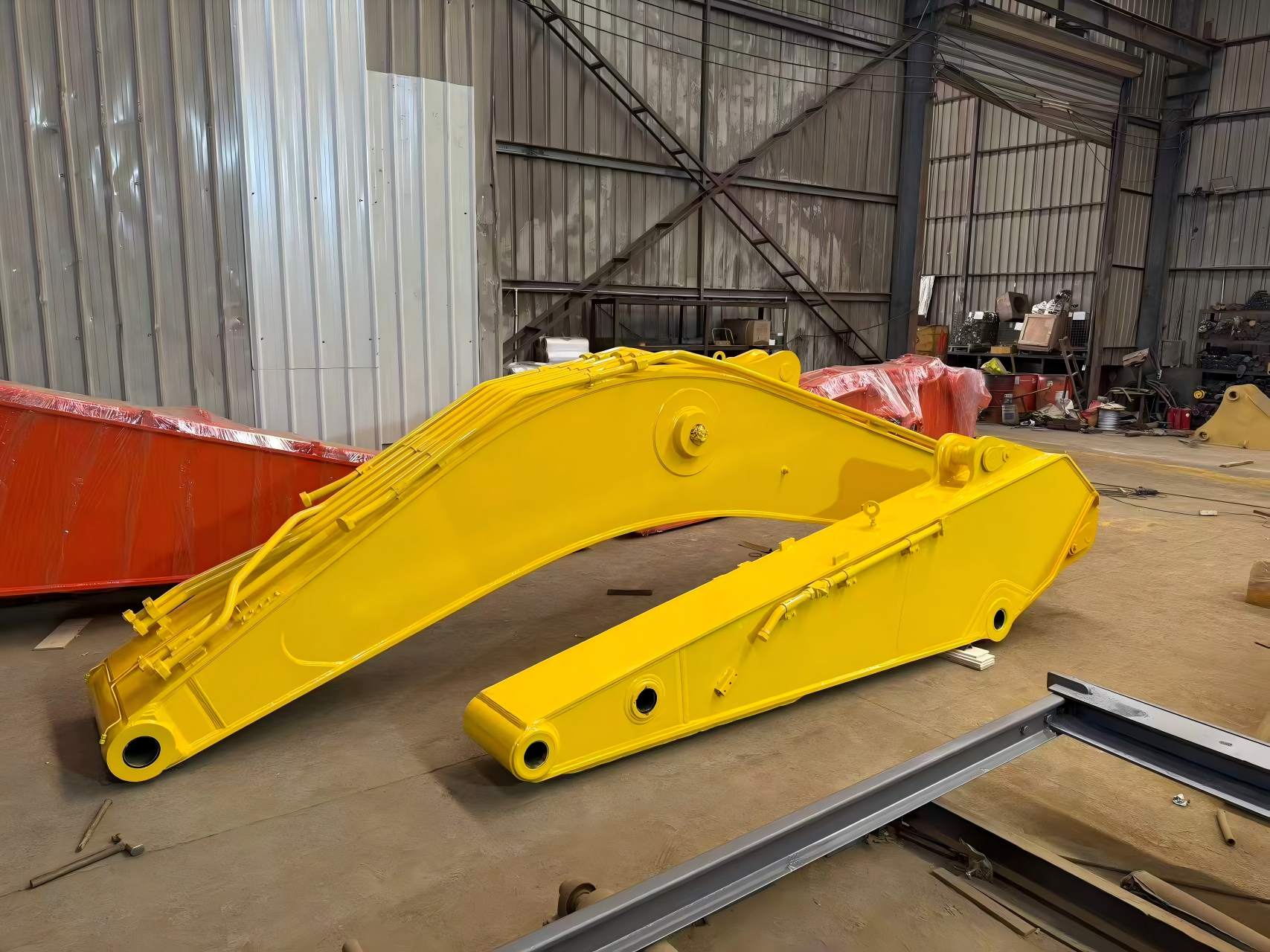

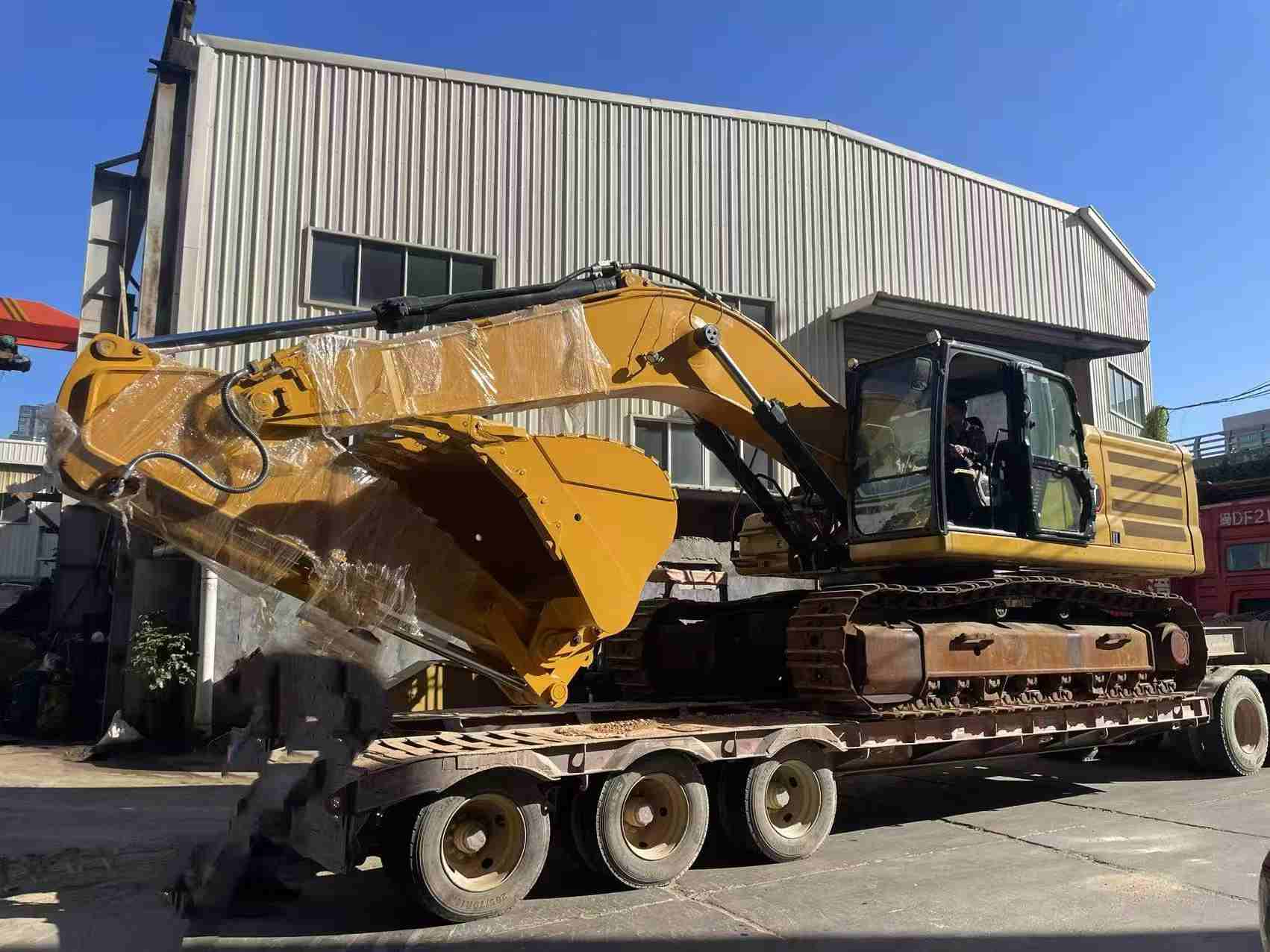

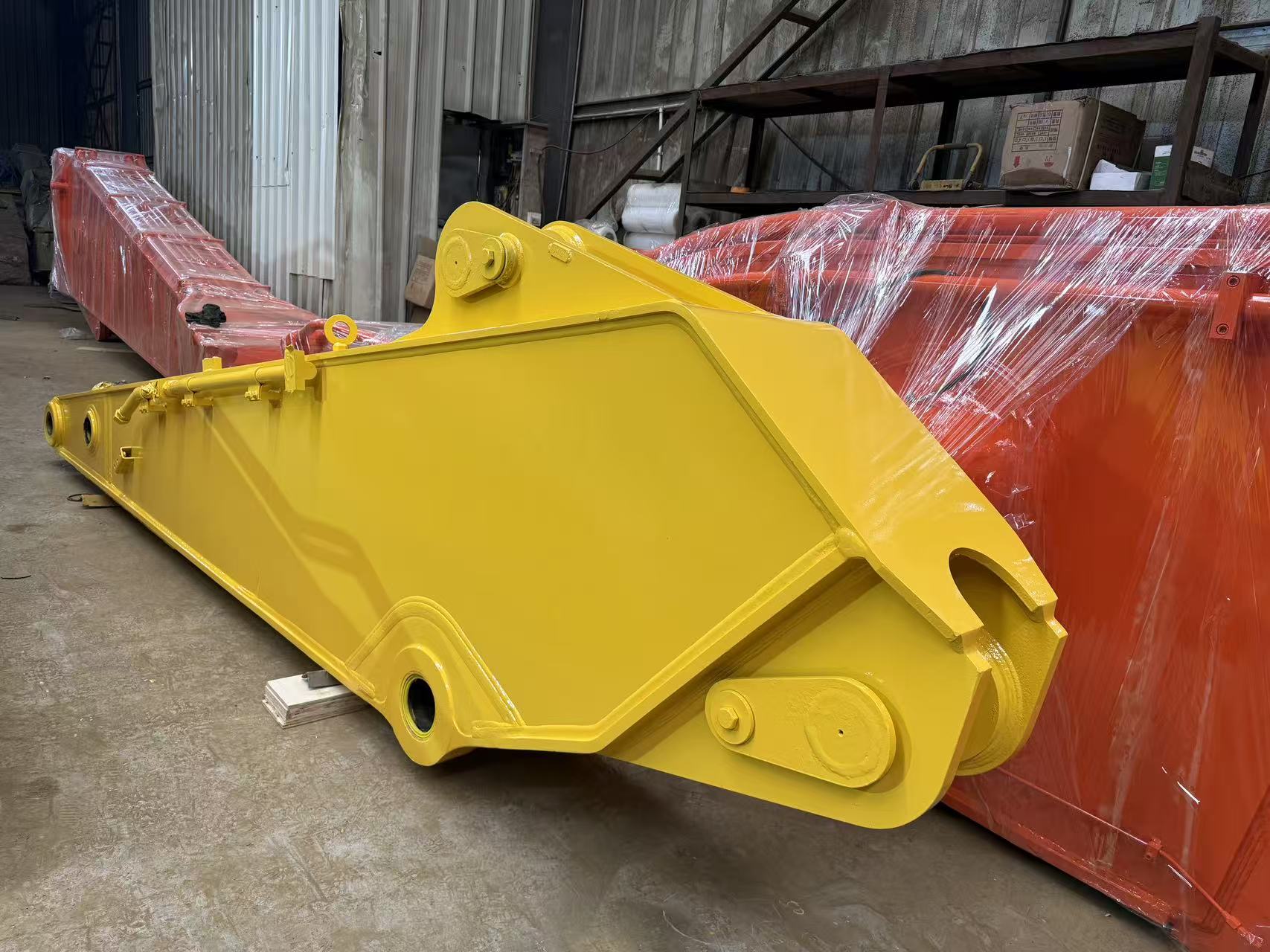

What is a Standard Boom?

A standard boom is the original factory-fitted arm equipped on most hydraulic excavators.

Design & Structure: Built with high structural density and optimized force distribution for maximum digging force.

Key Strengths: High breakout force, faster cycle times, and superior stability when lifting heavy loads.

Best Suited For: General earthmoving and trenching,Quarrying and rock loading,Foundation digging in restricted spaces,Truck loading in dense soil conditions.

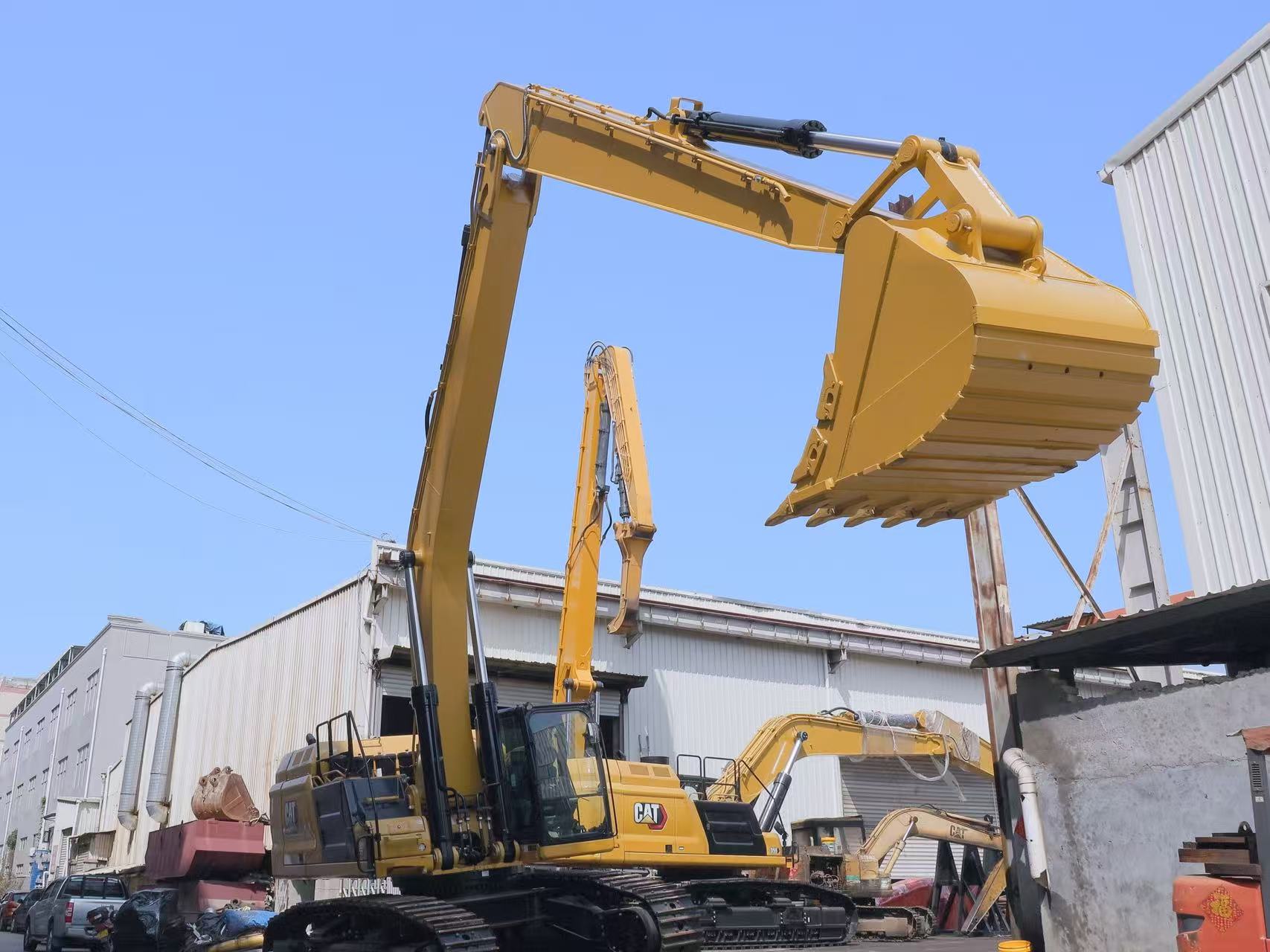

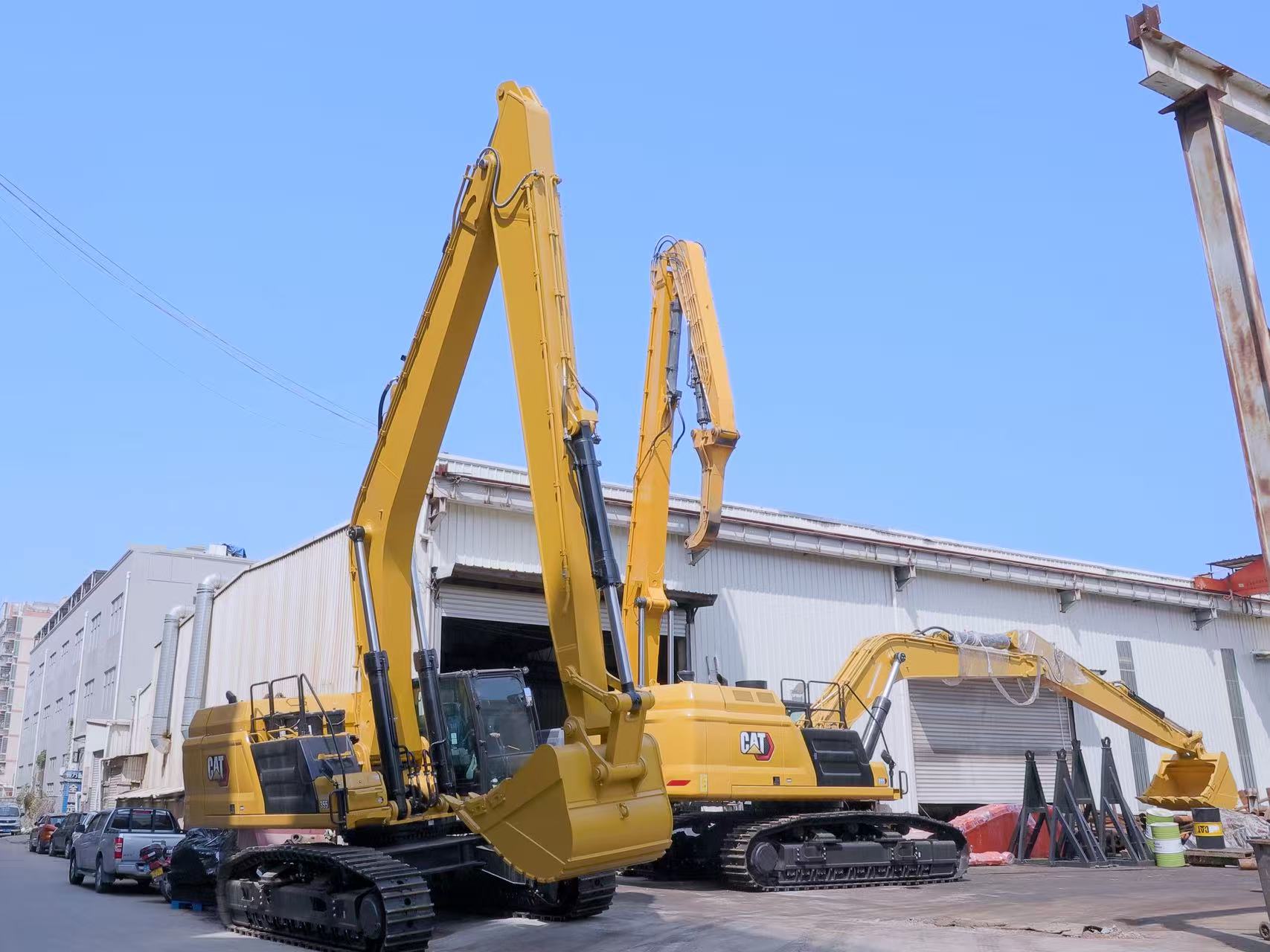

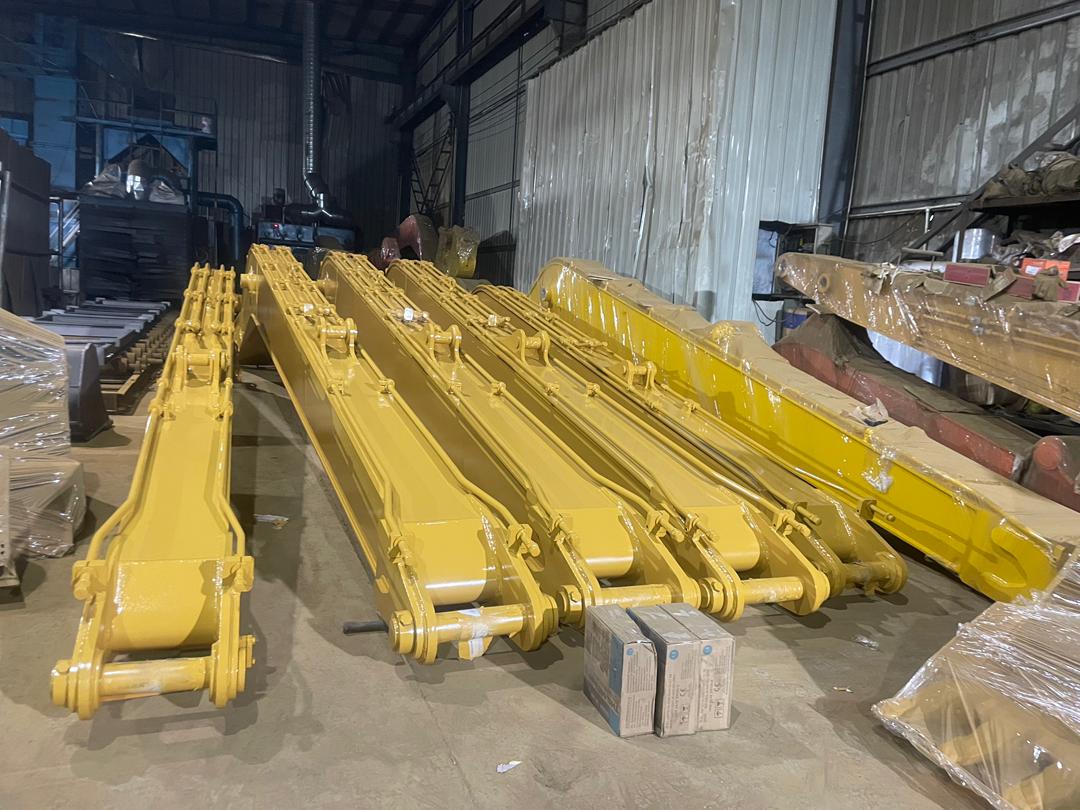

What is a Long Reach Boom?

A Long Reach Boom (LRB) is a extended front-end attachment designed to drastically increase the working radius and digging depth of an excavator.

Design & Structure: Engineered with lighter, high-strength structural steel (such as Q355B or Q690D) and calibrated counterweights to ensure machine balance during extended operations.

Key Strengths: Extended reach (up to 18–30+ meters depending on excavator tonnage), deep vertical digging capabilities, and access to hazard/soft-soil zones without moving the base machine close to the edge.

Best Suited For: River, canal, and pond dredging,Slope leveling and embankment maintenance,Port and harbor maintenance,Deep basement or subway shaft excavation.

How to Choose the Right Boom for Your Project?

To determine which setup fits your job site, ask yourself these three core questions:

1. What is your required working distance?

If your bucket needs to reach over 10–12 meters away or deep down into waterways or slopes where the tracks cannot safely tread, a Long Reach Boom is essential.

2. What material are you handling?

If you are digging hard rock, virgin clay, or heavily compacted soil, the Standard Boom provides the necessary breakout force. If you are moving soft silt, sand, mud, or uncompacted topsoil, a Long Reach Boom delivers maximum efficiency.

3. What are the job site safety restrictions?

Working near unstable riverbanks or steep demolition sites poses severe tipping risks. A long reach boom allows the base machine to stay on stable, dry ground while operating safely at a distance.

While a Standard Boom remains the workhorse for heavy-duty digging, a Long Reach Boom is an indispensable asset for specialized, long-distance, and deep-water applications. Matching the right boom to your job site not only boosts productivity but also protects your equipment and operators.
